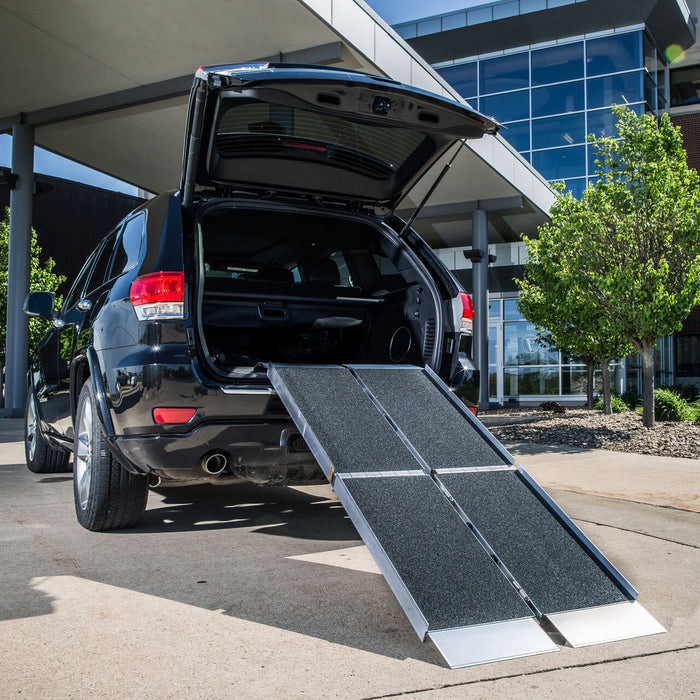

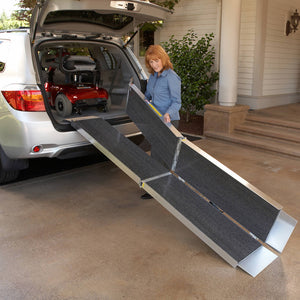

EZ-ACCESS Suitcase Trifold Ramp with Top Lip Extension (Available in 5 to 10 Feet)
The SUITCASE® TRIFOLD® AS Ramp has a unique 3-fold design that allows for ultimate portability when longer ramp lengths are needed. The ramp is designed to be used and carried as one unit, or can quickly be separated into two individual sections. Offered in lengths ranging from 5' to 10' and is ideal for raised landings, steps, or larger vehicles. Made from aircraft-quality aluminum, this ramp features an applied, slip-resistant surface and self-adjusting bottom transition plates for easy conversion from ramp to ground. This folding ramp is recommended for wheelchairs and scooters, and not recommended for those using a cane or a walker. The raised center hinge could be problematic for foot traffic.
This item ships freight and has a flat shipping cost of $199
Note: Image shown may not represent the length of ramp you are ordering. Order your ramp based on the vertical rise, not the representation of the ramp shown. If you are unsure about the length of ramp needed, please call us at 1-888-516-0077.
Features:
-
Quick and Easy: This unique portable ramp is easy to set up and transport thanks to its 3-fold design and its ability to separate into two easy-to-carry sections.
- Suitcase Design folds In half and carries like a suitcase. Convenient handle makes it easy to carry and store.
- High Grade Non-Slip Tape covers the ramp for great traction even in rain and snow.
- Self-adjusting bottom transition plates allow for smooth ramp-to-ground transitions. Formed top lip transition plates offer secure placement.
-
Optional Top Lip Extension (TLE) compatible. The patented Top Lip Extension (TLE) extends the use of aluminum SUITCASE ramps by increasing the standard 3” top lip transition plate to 9”, allowing these ramps to clear the rear bumper of SUVs and vans. Features an extruded slip-resistant surface and is made of aluminum for maximum strength.
- Proudly Made in the USA
5 Foot Ramp: 32 lbs. (30.75" x 15" x 11.5" Folded Size)
6 Foot Ramp: 38 lbs. (36.75" x 15" x 11.5" Folded Size)
7 Foot Ramp: 44 lbs. (42.75" x 15" x 11.5" Folded Size)
8 Foot Ramp: 50 lbs. (48.75" x 15" x 11.5" Folded Size)
10 Foot Ramp: 60 lbs. (60.75" x 15" x 11.5" Folded Size)
Warranty: Limited Lifetime Warranty
To Establish the Proper Ramp Length:
-
Select the incline you desire. Refer to your equipment’s user guide or individuals capabilities. We start you off with the ADA Standard Ratio of 1:12, but we recommend you confirm with your local/city code.
-
Measure the distance from the top step/landing to the ground (RISE).
-
Enter the values in the form to determine your run and ramp length
